Stress-Strain Curves for 301 Stainless Steel (SS)
Figure 1 shows stress strain data for annealed and 1/4 hard 301 SS for a tension test .
Figure 2 shows several stress-strain curves for a 301 SS sheet at various temperatures. The sheet was full hard with 40% reduction
Figure 3 shows different stress-strain curves for a 301 SS sheet under tension loading at room and low temperatures. The specimen was an extra hard cold-rolled sheet with a composition of Fe-18Cr-8Ni.
Figure 4 shows a 301 SS sheet with tension loading for, left) 65% cold reduction (CR), 482 C (900 F), 2 h, air cooled and right) 65% CR 399 C (750 F) 2 h, air cooled. The composition of heat : Fe-0.11C-17.25Cr-7.00Ni-0.57Mn-0.5Si.
Figure 5 shows a 301 1/2-hard SS sheet for a variety of loading directions: longitudinal tensile (TL), longitudinal compressive (LC), transverse tensile (TT), and transverse compressive (TC). The composition is Fe-18Cr-8Ni.
Figure 6 shows a 301 SS annealed sheet for a compressive loading at eleveated temperatures. The composition is Fe-18Cr-8Ni.

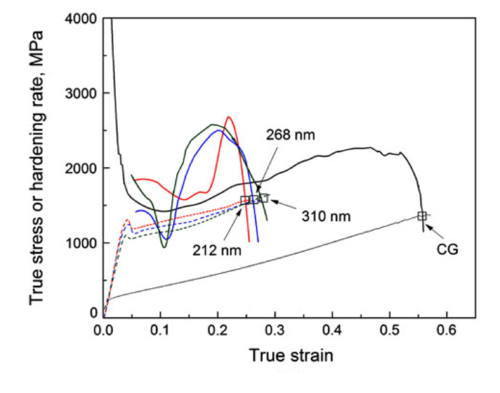

Figure 7 shows the engineering stress-strain curves of UFG 301 SS with various grain sizes for tension. Huang et al used the Equal Channel Angular Pressing (ECAP) technique to vary the microstructure of 301 SS. Figure 8 shows the corresponding true stress-strain curves for this experiment along with the strain hardening rate true strain curves.
Fatigue Stress-Life Curves for 301 SS

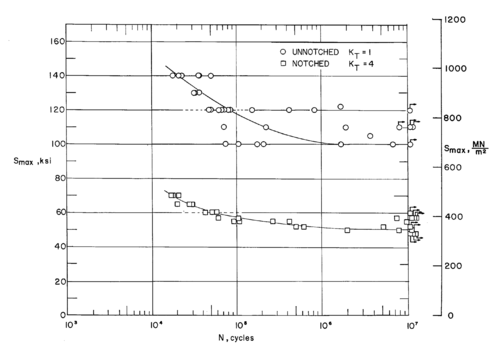

Figure 9 shows a fatigue stress-life plot for 301 SS 50% cold rolled with a mean stress of 40000 psi (276 MPa). The figure shows results for an unnotched and notched case. Both Figures 9 and 10 are for a preexposure static test.

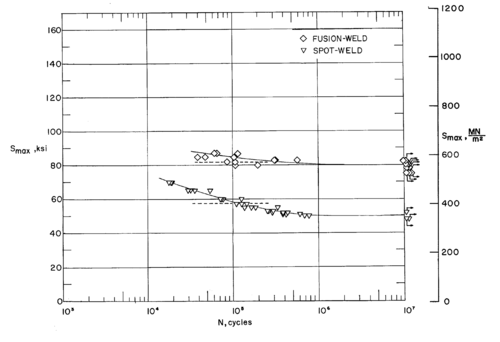

Figure 10 shows a fatigue stress-life plot for 301 SS 50% cold rolled with a mean stress of 40000 psi (276 MPa). This S-N curve is for a fusion-weld and a spot-weld.

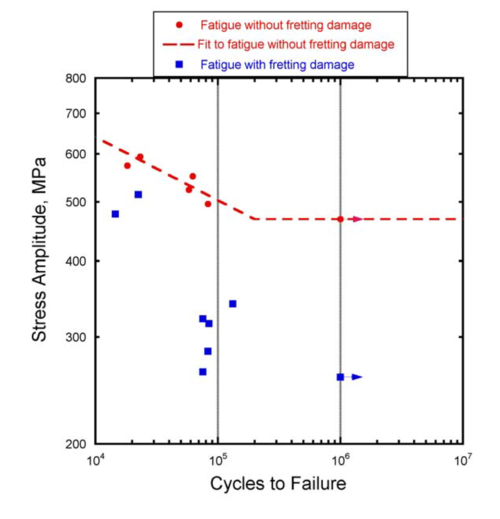

Figure 11 shows a fatigue stress-life plot for 301 SS in full hard condition. This plot shows the knockdown in fatigue life due to fretting of 301 SS with AISI 52100 steel.
- ↑ Steel, Allegheny Ludlum Stainless. "Type 301 (UNS Designation S30100)." Allegheny Ludlum—An Allegheny Technologies Company, Technical Data Blue Sheet, Allegheny Ludlum Corporation, Pittsburgh, PA (1998): 1-6.
- ↑ "High Strength Cold Rolled Stainless Steels," Data Sheet, Allegheny Ludlum Steel Corp., 1958. As published in Aerospace Structural Metals Handbook, Vol 2, Code 1301, CINDAS/USAF CRDA Handbooks Operation, Purdue University, 1995. p 30
- ↑ L.P. Rue, J.E. Campbell, and W.F. Simmons, "The Evaluation and the Effects of Very Low Temperatures on the Properties of Aircraft and Missile Metals," WADD-TR-60254, Feb 1960. As published in Aerospace Structural Metals Handbook, Vol 2, Code 1301, CINDAS/USAF CRDA Handbooks Operation, Purdue University, 1995, p 31
- ↑ "Data Sheet 19-101656-301," Allegheny Ludlum Steel Corp., Pittsburgh, PA. As published in Structural Alloys Handbook, Vol 2, CINDAS/USAF CRDA Handbooks Operation, Purdue University, 1994, p 29
- ↑ Technical Blue Sheet, www.alleghenyludlum.com, Allegheny Ludlum Steel Corp., 2002, p 3
- ↑ D.E. Miller, "Determination of the Tensile, Compressive and Bearing Properties of Ferrous and Non-Ferrous Structural Sheet Materials at Elevated Temperatures," AFTR No. 6517, Pt V, Armour Research Foundation, Dec 1957. As published in Aerospace Structural Metals Handbook, Vol 2, Code 1301, CINDAS/USAF CRDA Handbooks Operation, Purdue University, 1995. p 47
- ↑ Huang, C. X., et al. "Mechanical behaviors of ultrafine-grained 301 austenitic stainless steel produced by Equal-Channel Angular Pressing." Metallurgical and Materials Transactions A 42.7 (2011): 2061-2071.
- ↑ Illg, Walter, and Claude B. Castle. Fatigue of Four Stainless Steels and Three Titanium Alloys Before and After Exposure to 550 F (561 K) up to 8800 Hours. No. NASA-TN-D-2899. NATIONAL AERONAUTICS AND SPACE ADMINISTRATION HAMPTON VA LANGLEY RESEARCH CENTER, 1965.
- ↑ Hirsch, Michael Robert. "Fretting behavior of AISI 301 stainless steel sheet in full hard condition." (2008).
