# Stress Strain data-4130 Steel

Alloy steels are represented by AISI four-digit numbers. They are generally more receptive to mechanical and heat treatments as compared to the carbon steels. They are composed of varying types of steels with compositions exceeding the limitations of B, C, Mn, Mo, Ni, Si, Cr, and Va in the carbon steels. [1]

## Introduction

AISI 4130 alloy steel is composed of chromium and molybdenum as strengthening agents. The carbon content is low, therefore it can be wended conveniently. 4130 Steel can be machined easily using well-known methods. However, when the hardness of the steel is increased, machining becomes difficult. 4130 Steel can be welded using all commercial methods. 4130 Steel has major applications in the area of Aircraft engine mounts, welded tubing, etc. This class of steel can be case hardened by carburization of the surface. The outer surface is significantly hardened to reduce wear and tear whereas the core of the material retains its bulk properties. [2] Owing to this ability, this grade of steel serves as an excellent material for gears, piston pins, and crankshafts. [3]

## Stress-Strain Data

### Tensile stress-strain curves at room and elevated temperatures

Test conditions for the tensile test are as follows:

• Test direction: longitudinal
• Sheet thickness: 1.626 mm (0.064 in)
Figure 1: 4130 chromium-molybdenum alloy sheet, tensile stress-strain curve.[4]
``` Figure 1: $857^o C (1575^o F)$
Oil quenched and tempered $538^o C (1000^o F)$
Nominal strength : 1034 MPa (150 ksi)
```
Figure 2: 4130 chromium-molybdenum alloy sheet, tensile stress-strain curve.[4]
``` Figure 2: $857^o C (1575^o F)$
Oil quenched and tempered $538^o C (1000^o F)$
Nominal strength : 1034 MPa (150 ksi)
```
Figure 3: 4130 chromium-molybdenum alloy sheet, tensile stress-strain curve.[4]
``` Figure 3: $857^o C (1575^o F)$
Oil quenched and tempered $399^o C (750^o F)$
Nominal strength : 1379 MPa (200 ksi)
```

Specimens were held at room temperature for 0.5-100h. Composition: Fe-0.3C-0.95Cr-0.2Mo. UNS G41300[5]

### Compressive stress-strain curves at room and elevated temperatures

Test conditions for the tensile test are as follows:

• Test direction: longitudinal
• Sheet thickness: 1.626 mm (0.064 in)

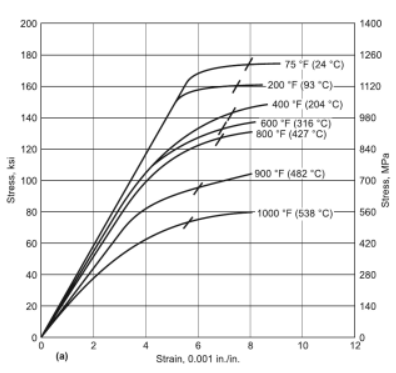

Figure 5: 4130 chromium-molybdenum alloy sheet, Compressive stress-strain curve.[4]
``` Figure 4: $857^o C (1575^o F)$
Oil quenched and tempered $538^o C (1000^o F)$
Nominal strength : 1034 MPa (150 ksi)
```
Figure 6: 4130 chromium-molybdenum alloy sheet, Compressive stress-strain curve.[4]
``` Figure 5: $857^o C (1575^o F)$
Oil quenched and tempered $538^o C (1000^o F)$
Nominal strength : 1034 MPa (150 ksi)
```
Figure 7: 4130 chromium-molybdenum alloy sheet, Compressive stress-strain curve.[4]
``` Figure 6: $857^o C (1575^o F)$
Oil quenched and tempered $399^o C (750^o F)$
Nominal strength : 1379 MPa (200 ksi)
```

Specimens were held at room temperature for 0.5-100h. Composition: Fe-0.3C-0.95Cr-0.2Mo. UNS G41300[5]

### True stress-strain curves at different strain rates and temperatures

4130 Steel is one of the alloys that has been widely used in natural gas cylinders that are manufactured through the hot deformation processes. The following curves are a result of study conducted towards this end. Hot compression tests are carried out on 4130 steel specimens at a range of temperature $(900-100^o C)$, with a strain rate range of $0.001-0.1s^{-1}$ and a strain of 0.9.

Figure 7: True stress-strain curve for 4130 steel at $900^o C$.[6]

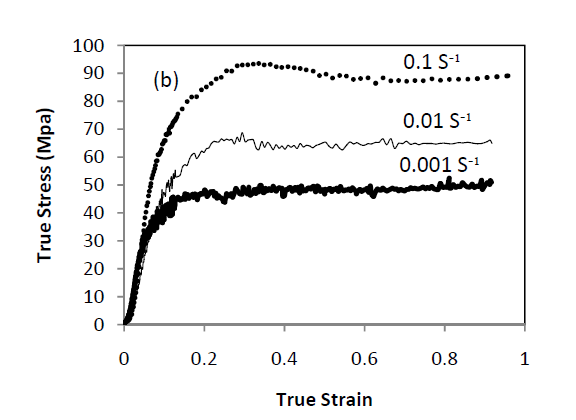

Figure 8: True stress-strain curve for 4130 steel at $1000^o C$.[6]

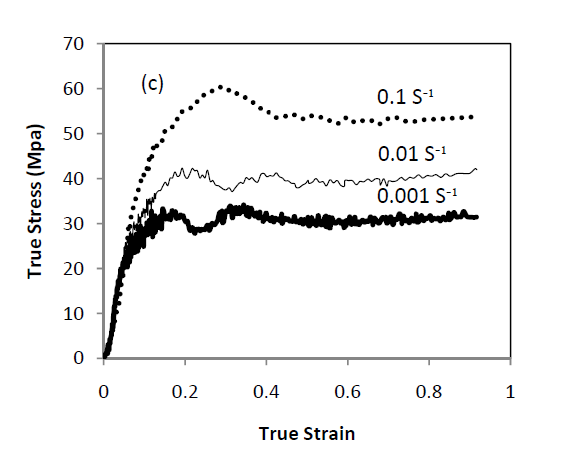

Figure 9: True stress-strain curve for 4130 steel at $1100^o C$.[6]
